Value: £13m
Timeline: 2014 – 2018
Client: Taylor Woodrow
Contract Conditions: NR12

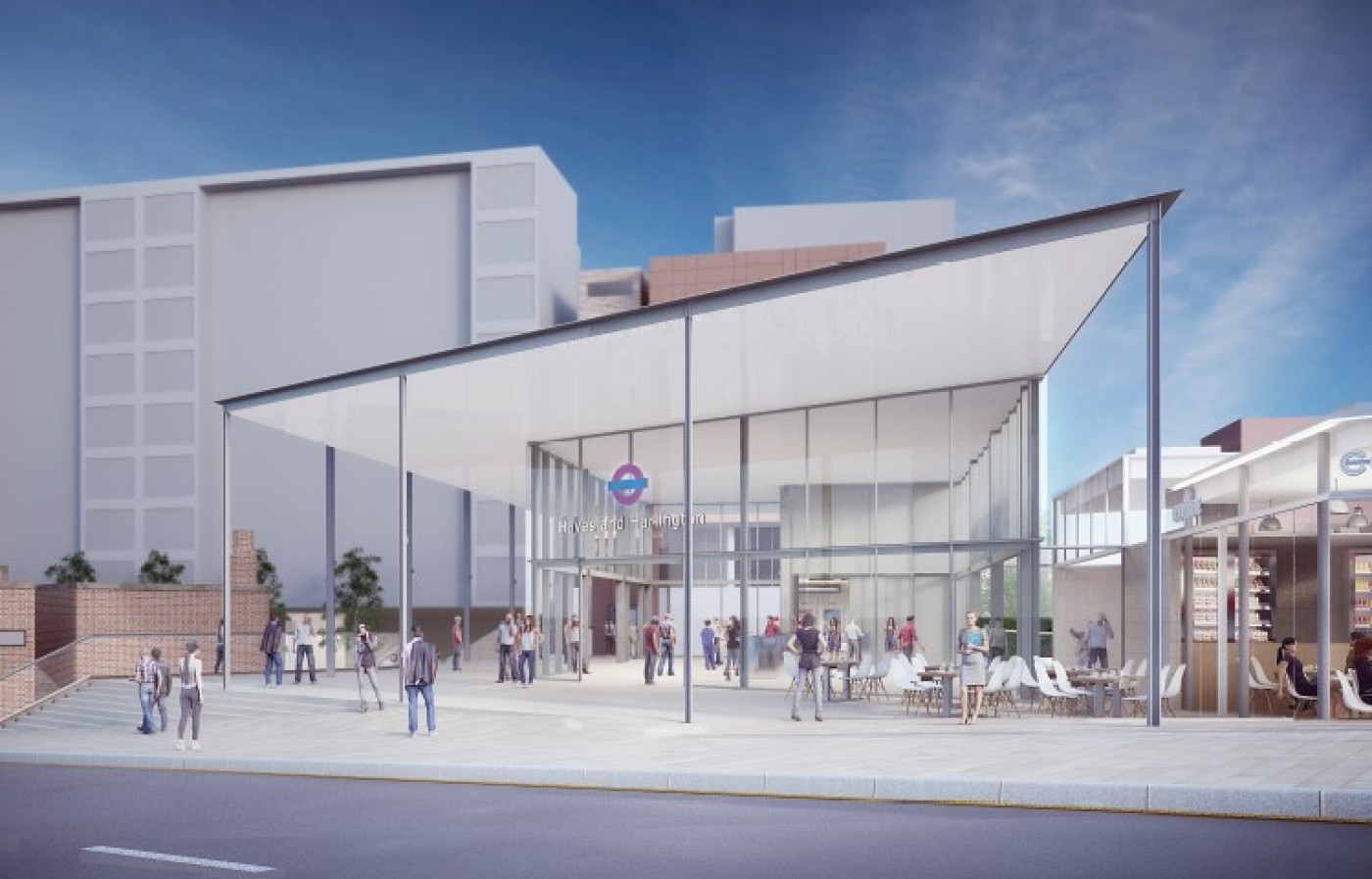

Project Description: Crossrail, Europe’s largest infrastructure project, provides a vital link across the capital with over 100km of track. Emico was appointed as designer and installer of mechanical, electrical and fire systems on thirteen stations from Slough to Maidenhead.

A multi-site project combined with working on live operational infrastructure and limited access to the track presents many issues to overcome.  When combined with working with the public on operational stations, this becomes a major challenge.  Emico has provided design solutions which are buildable – early collaboration with our client Taylor Woodrow has ensured that we carry out only those surveys required to complete the design.  Buildability in a live station environment is a key issue – maintaining operation of the station and the safety of the travelling public whilst ensuring new systems are implemented.

• Electrical Engineering
• Design
• Commissioning

Open Gallery

Emico was involved in the upgrades for 13 Crossrail stations:

• Maidenhead
• Taplow
• Burnham

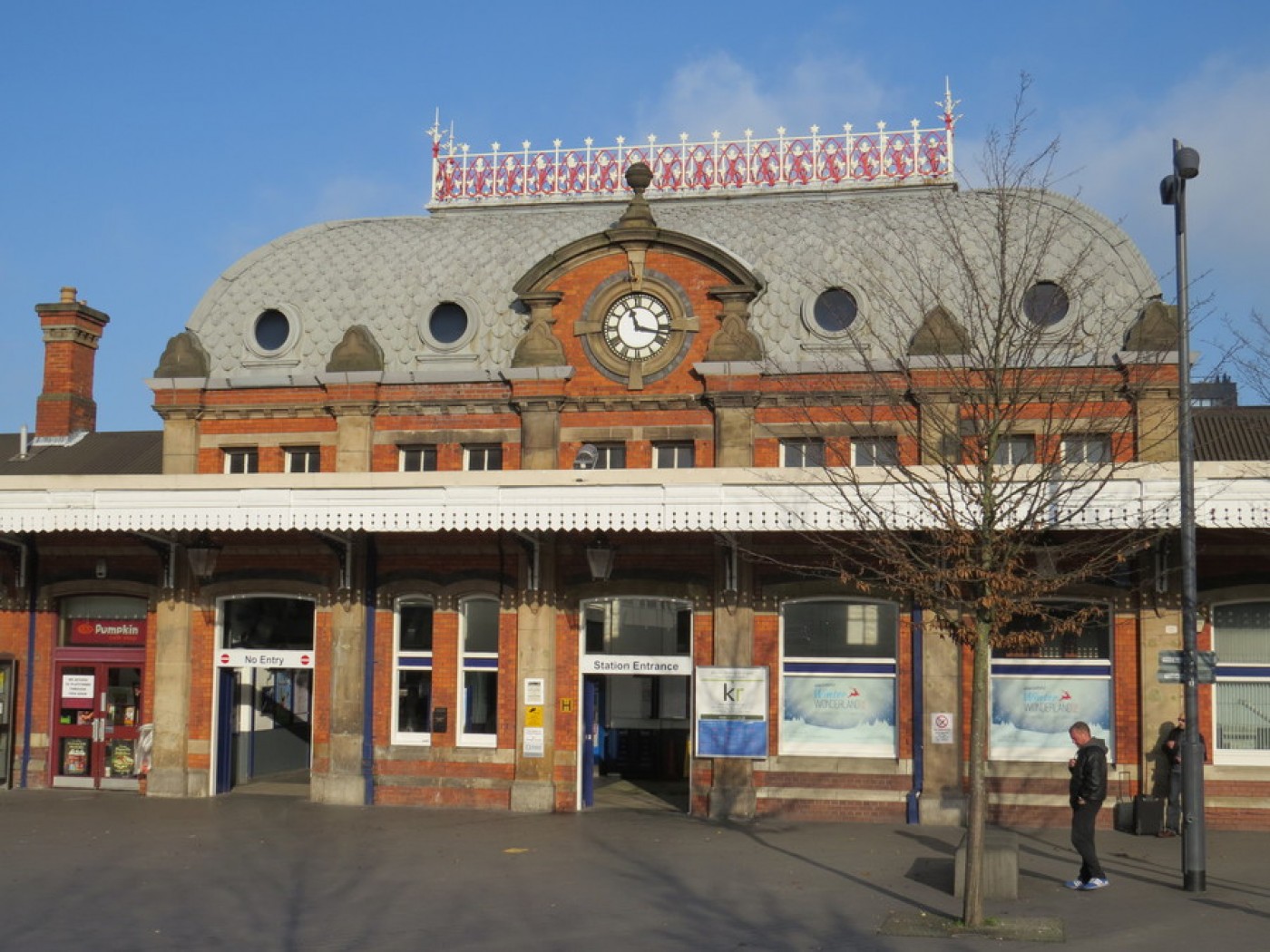

• Slough
• Langley
• Iver
• West Drayton

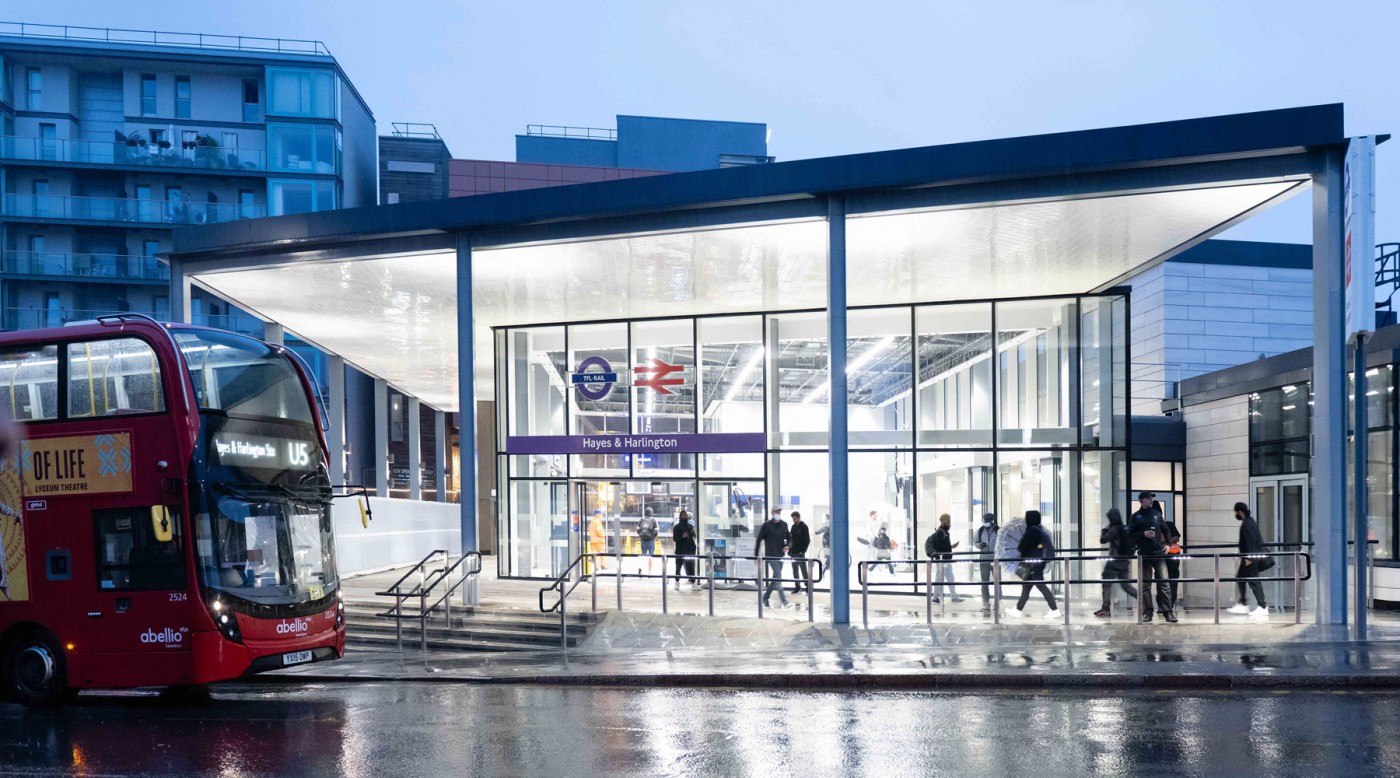

• Hayes & Harlington
• Southalll
• Hanwell

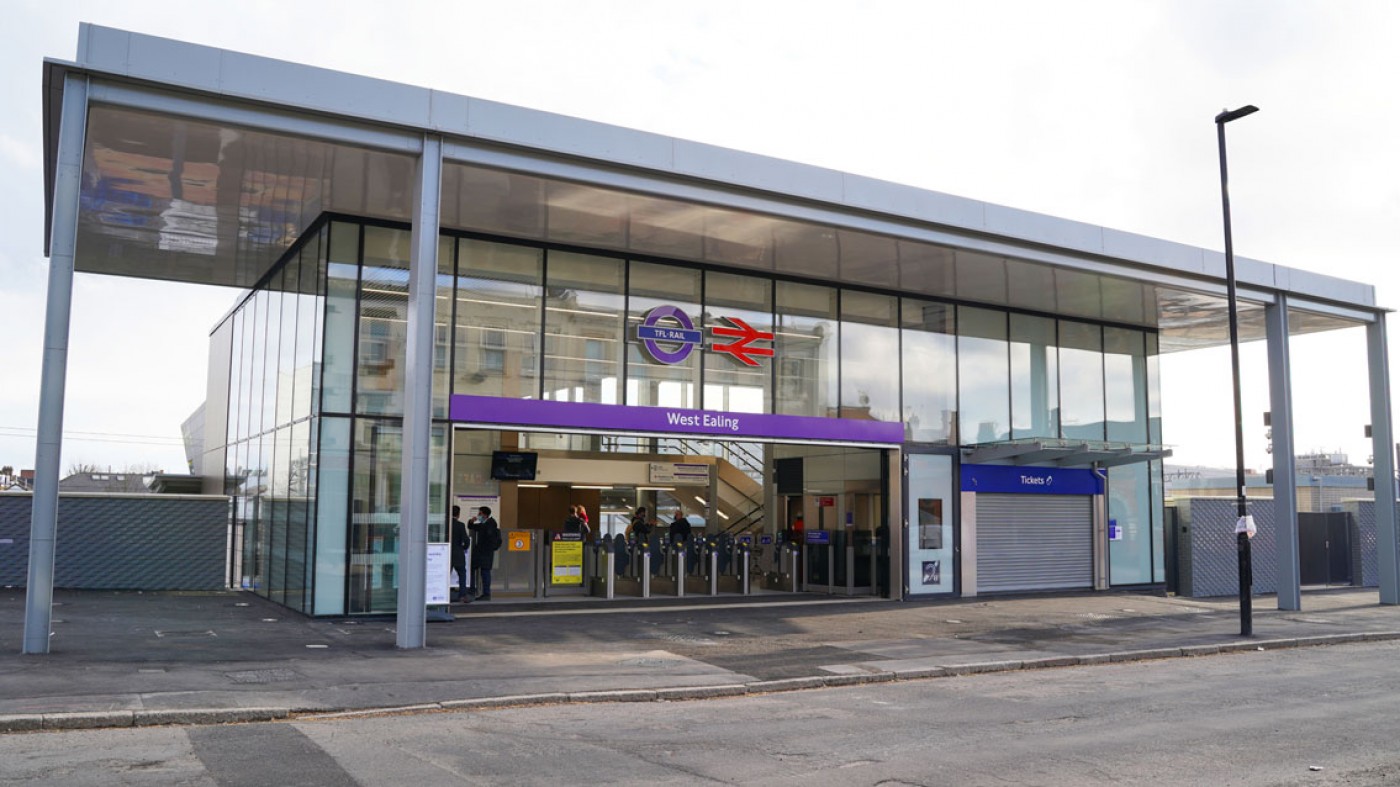

• West Ealing
• Ealing Broadway

Design and delivery detail:

• Interface design between Arcadis and Taylor Woodrow
• Support constructability within RIBA 5
• Upgrades to concourse areas, ticket offices, switchrooms, bridges and platform areas

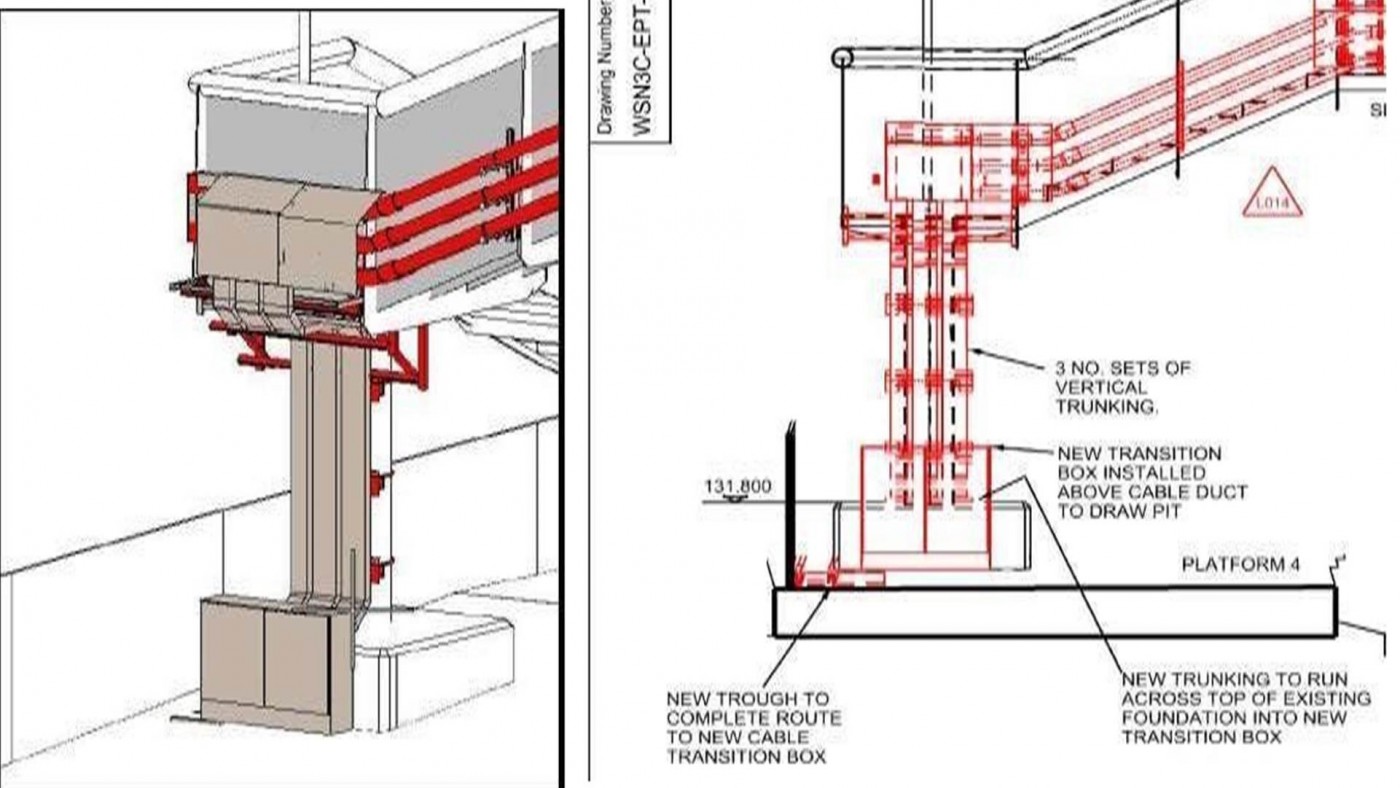

• Platform areas - CMS, lighting, cabinets, power, comms, fire alarm systems and domestic supplies in facilites
• Undertook surveys for the design and load monitoring prior to deisgn works
• Undertook earthing strategies
• Upgrading of DNO supplies

Client Key Issues: Live working environment requiring minimal disruption
Client Benefits: Emico was able to deliver the works in collaboration with Taylor Woodrow without impact on rail operations.

Recognition and the acknowledgment from Taylor Woodrow:
