Victoria Station - Northern Ticket Hall

Introduction

Make an Enquiry

Value: £1m
Timeline: 2014 – 2015
Client: Taylor Woodrow BAM Nuttal (TWBN)
Contract Conditions: NEC Option A

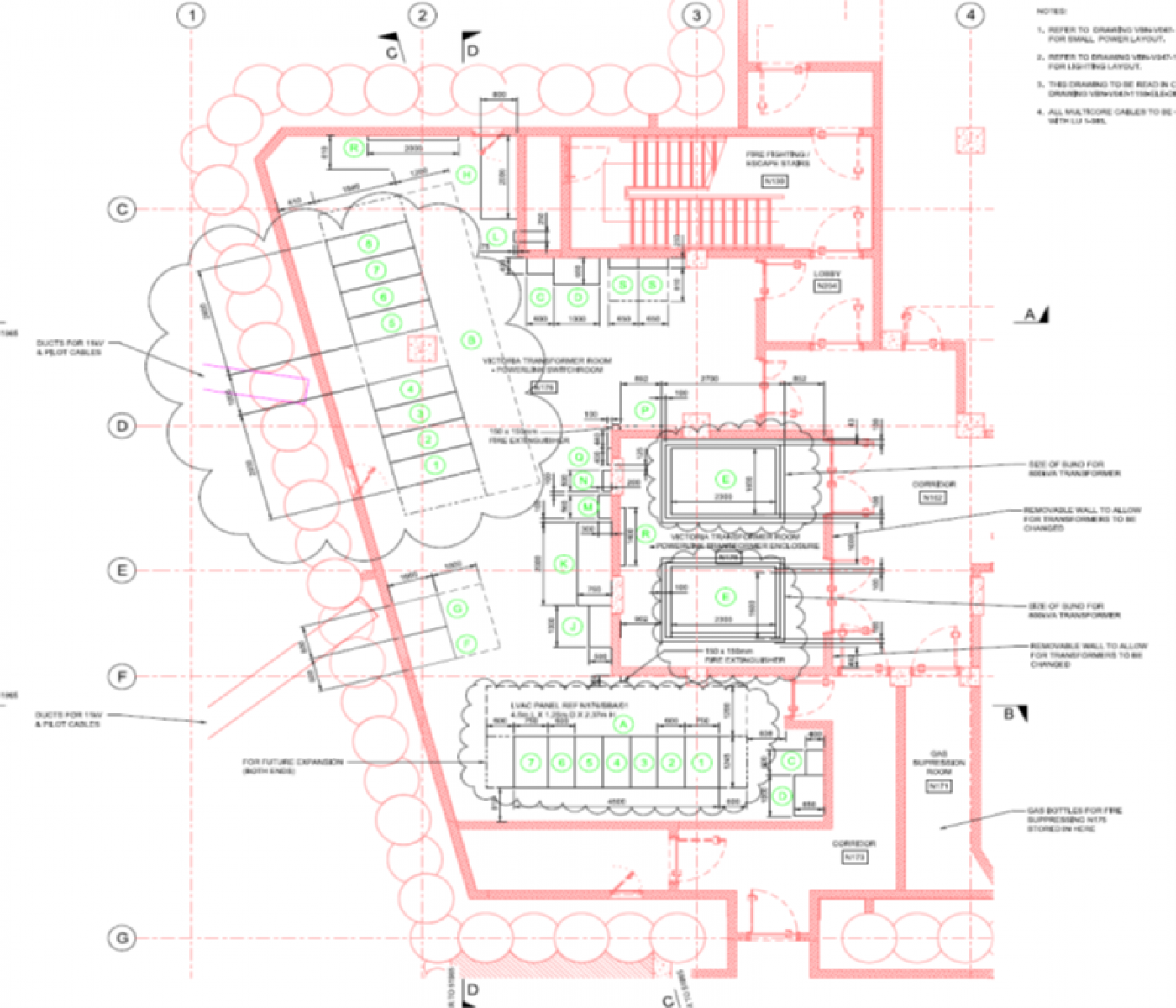

Project Description: As part of the development of the new Northern Ticket Hall at Victoria Station a new 11kv/433V Transformer was required to supply the Northern Ticket Hall. Emico were tasked with the Design & Build of the new Transformer Room electrical services and were responsible for developing the LV & MV designs from concept stage through to detailed design, followed by the production of the AFC working drawings and installation works.

Open Gallery

Design & Delivery Detail:

  • RIBA Stage E & F Design of the LV & 11kV Cabling; Switchgear and associated equipment as part of the new Transformer Room;

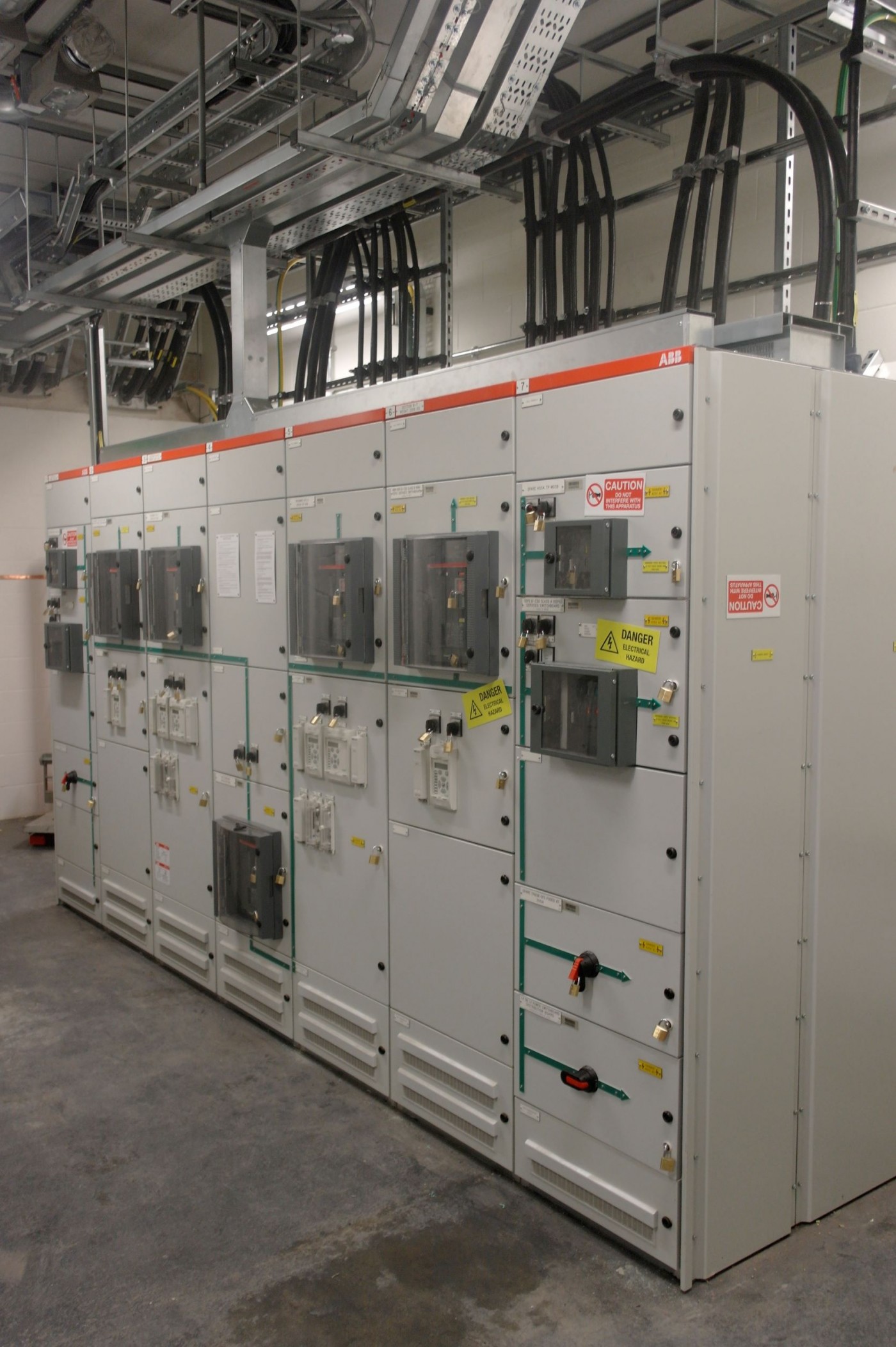

  • LV Panel design

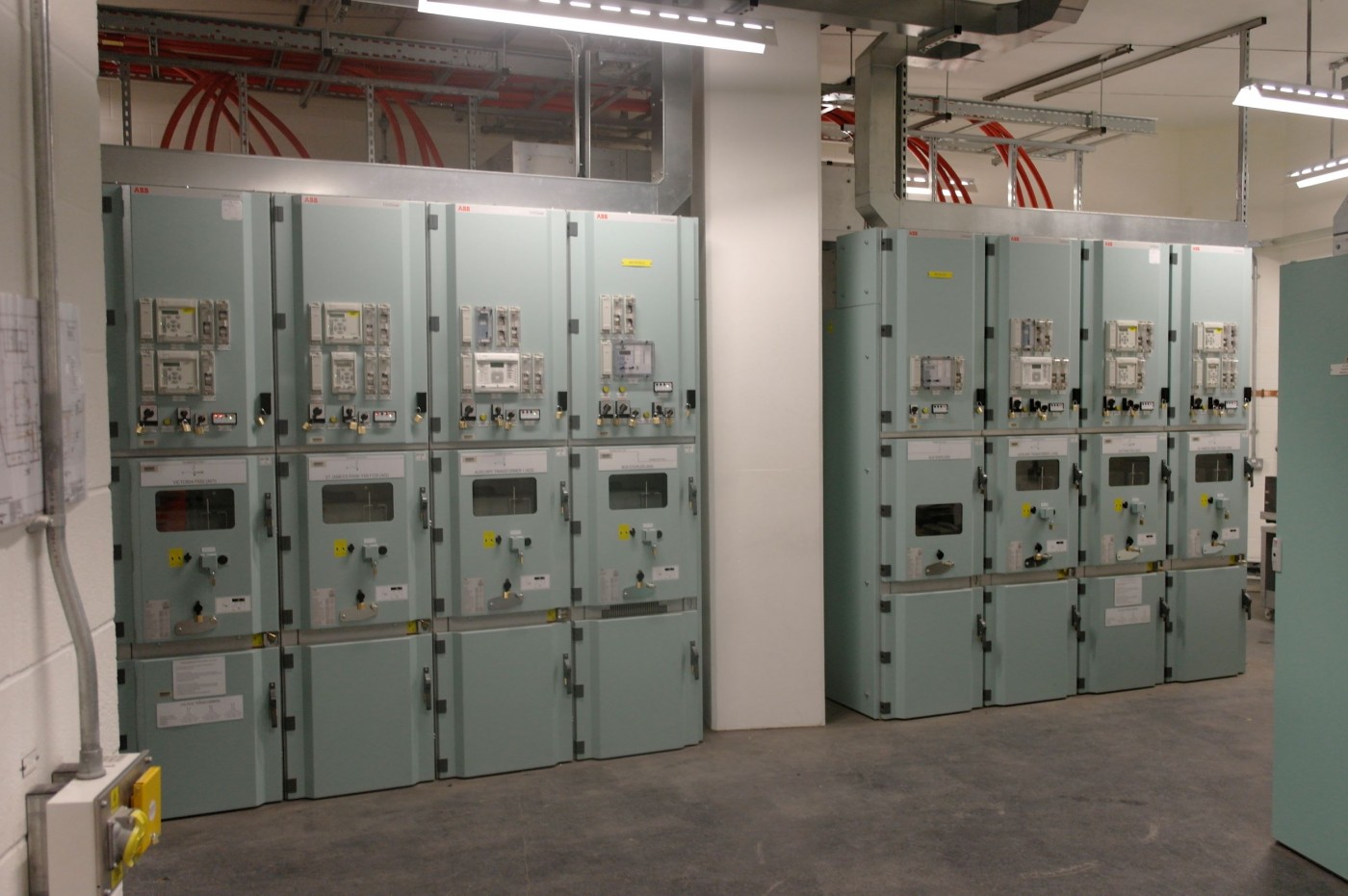

    • 11kV Switchgear Design with bespoke busbar design constructed around a structural column

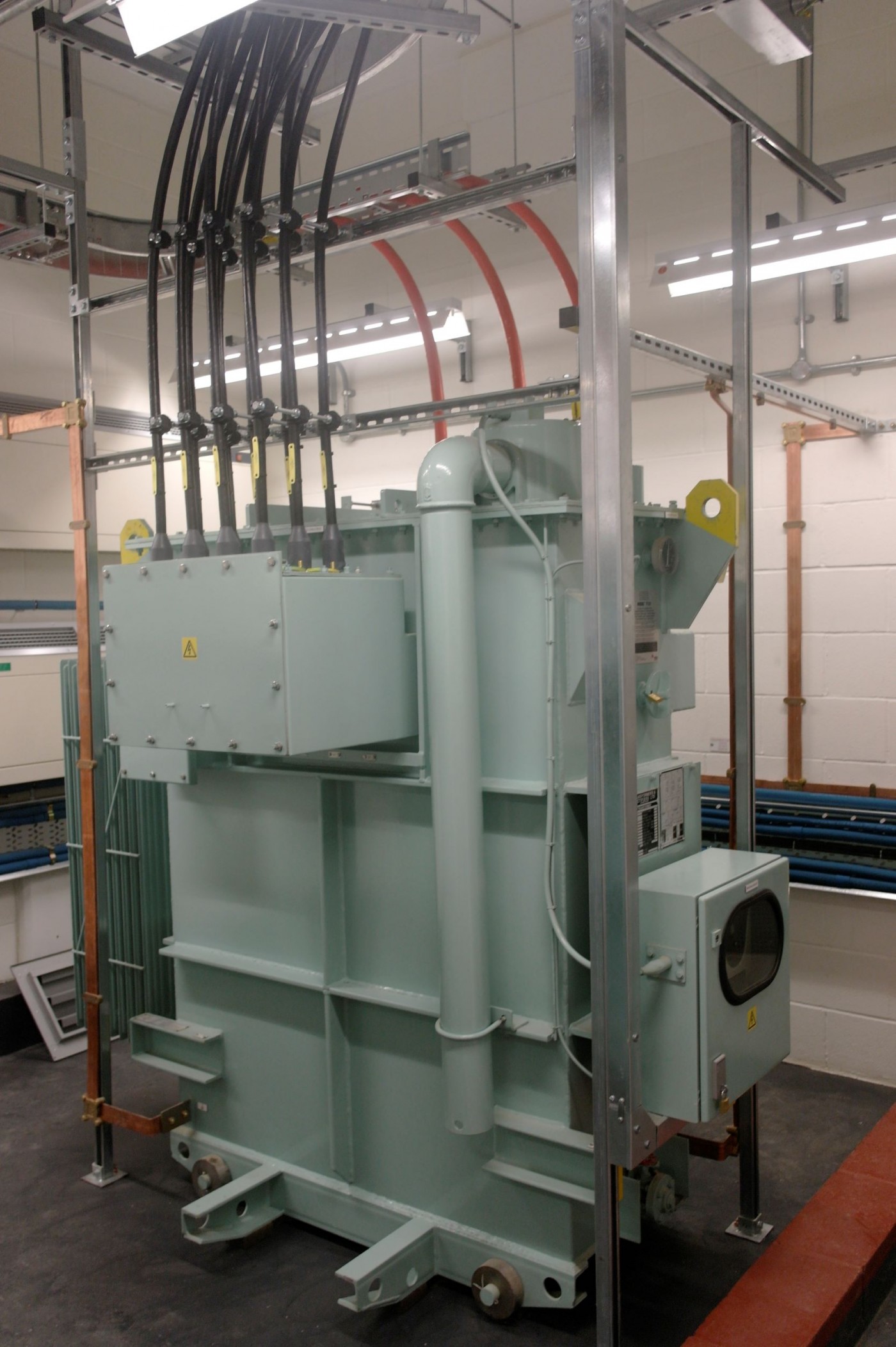

    • Bespoke 800kVA 11kV/433V Midel Filled Transformer Design using British Based Manufacturer
    • Design of the Auxilliary Supplies for remote switching of breakers
    • SCADA RTU Design
    • Pilot Box Design
    • Earthing Design
    • HV Protection Design and relay configuration
    • Blast Venting design
    • ATS design for LV Transformer Supplies
    • District Line CMS & duct route design
    • Transformer Room CMS design
    • Lighting and Small Power Design.
  • Test and commissioning; System integration; Handover and client training



Client Key Issues:

  • Cutting; Jointing & Diverting the existing 11kV PILC Feeders & Pilot cables (in an operational district line tunnel) running from St James Park Substation to the existing Victoria substation into the new Northern Ticket Hall Transformer Room.
  • Challenging Space Constraints
  • Structural columns in the location of the HV panel
  • Switchgear sizing and movement plans to get equipment into the room  3 levels below ground
  • Blast Venting Solution developed to vent vertically towards the ceiling due to there being no viable duct route to atmosphere
  • Specifying new to London Underground Midel filled transformers developed with and manufactured by UK supplier


Client Benefits: Turn Key Design & Build Solution provided by Emico ensuring a buildable design in a heavily congested space
